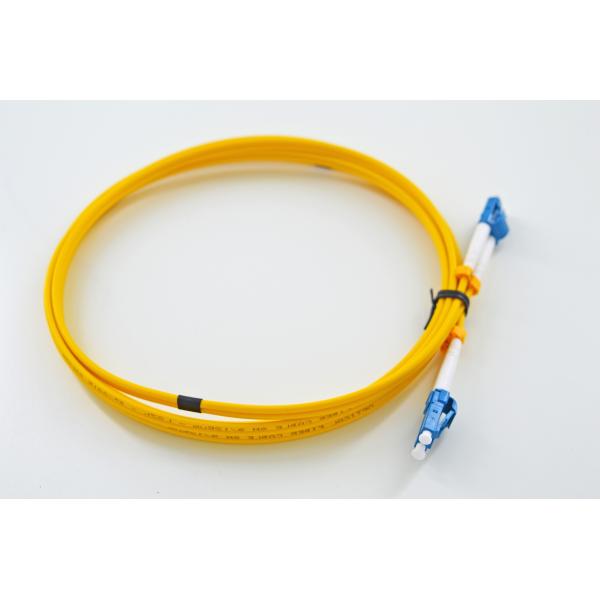

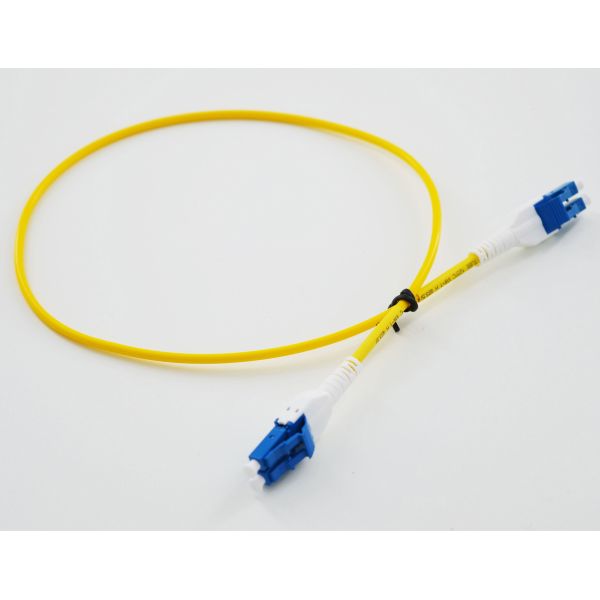

Fiber patch cord lc to lc multimode duplex 2.0mm PVC/LSZH/OFNR/OFNP Plenum Rated,SM/MM/OM3/OM4/OM5 optional

Name: Fiber patch cord lc to lc multimode duplex 20mm PVCLSZHOFNROFNP Plenum RatedSMMMOM3OM4OM5 optional
Brand: UNIFIBER
Price: 1 USD

China Fiber patch cord lc to lc multimode duplex 2.0mm PVC/LSZH/OFNR/OFNP Plenum Rated,SM/MM/OM3/OM4/OM5 optional wholesale

Brand Name : UNIFIBER

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Payment Terms : Western Union, T/T

Price : Negotiable

Model Number : LC-LC

Supply Ability : 10000PCS/DAY

Delivery Time : 3-5days

Packaging Details : PE bag

Connector : LC SC FC ST

Fiber Count : Simplex or Duplex

Cable Jacket : PVC/LSZH/OFNR/OFNP

Cable Diameter : 2.0 or 3.0mm

Contact Now

Fiber patch cord lc to lc multimode duplex 2.0mm PVC/LSZH/OFNR/OFNP Plenum Rated,SM/MM/OM3/OM4/OM5 optional

The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

APPLICATION

CATV

Active dvice termination

Telecommunication networks

Metro

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Wide Area Networks(WANs)

FEATURES

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green Production, CE, RoHS Standard

Parameters

Range of Mode	Single mode or Multi mode
Cable Type	Simplex, Duplex Ziocord. or Multi-cores
Connector Style	SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Diameter	0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket	PVC /LSZH/OFNP
Jacket Color	SM Yellow \| OM1, OM2 Orange \| OM3 Aqua \| OM4 Aqua or Violet \| OM5 Lemon Green
Durability	500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp.	-25℃ to +70℃
Storage Temp.	-40℃ to +85℃

Fiber patch cord lc to lc multimode duplex 2.0mm PVC/LSZH/OFNR/OFNP Plenum Rated,SM/MM/OM3/OM4/OM5 optional
